OE/OEM NUMBER :R900701407
PODUCT DESCRIPTION:
The Bosch Rexroth Proportional Pressure Reducing Valve model R900701407 / FTDRE 2 K3X/18AG24C4V-8 is a high-performance, proportional pressure reducing valve designed for precise and dynamic control applications in hydraulic systems. This valve is particularly useful in industries requiring high accuracy and responsiveness such as manufacturing, automotive, and aerospace.
Compatible with:
1.FTDRE2K37/18-8(24)
2.FTDRE 2 K3Z/18AG24C47-8
3.FTDRE 2 K3Z/18AG24C47-8
Here are some key features of this valve:
Technical Specifications:
1. **Valve Type**: Proportional Pressure Reducing Valve.
2. **Model Number**: R900701407 / FTDRE 2 K3X/18AG24C4V-8.
3. **Flow Rate**: Up to 24 l/min (liters per minute).
4. **Pressure Range**: From 0 to 350 bar (depending on the specific application requirements).
5. **Operating Temperature**: -20°C to +80°C.
6. **Electrical Input**: Typically 24 VDC, but can vary depending on the controller used.
7. **Proportional Control**: Enables smooth and continuous adjustment of the output pressure.
Functionality:
- **Reduction of Pressure**: It reduces the incoming hydraulic pressure to a lower level that can be precisely controlled.
- **Proportional Control**: The valve allows for the pressure reduction to be adjusted in proportion to the input signal, providing fine control over the system's dynamics.
- **Safety Features**: Includes features like relief valves to protect against overpressure conditions.
Applications:
- **Positioning Systems**: Precise control in robotic arms or CNC machines.
- **Pressure Control Systems**: In industrial machinery where accurate pressure regulation is crucial.
- **Hydraulic Drives**: For applications requiring smooth and responsive operation, such as in electric vehicles or aerospace landing gear.
Installation and Maintenance:
- **Installation**: Ensure proper alignment and correct mounting to avoid leakage or damage to the valve.
- **Maintenance**: Regular inspection for wear and tear, cleaning, and replacement of worn parts as necessary. Proper maintenance ensures long service life and optimal performance.
For detailed installation instructions, safety guidelines, and maintenance procedures, refer to the manufacturer's technical documentation or contact a qualified technician. Bosch Rexroth provides comprehensive resources including manuals, datasheets, and application notes to support users effectively.

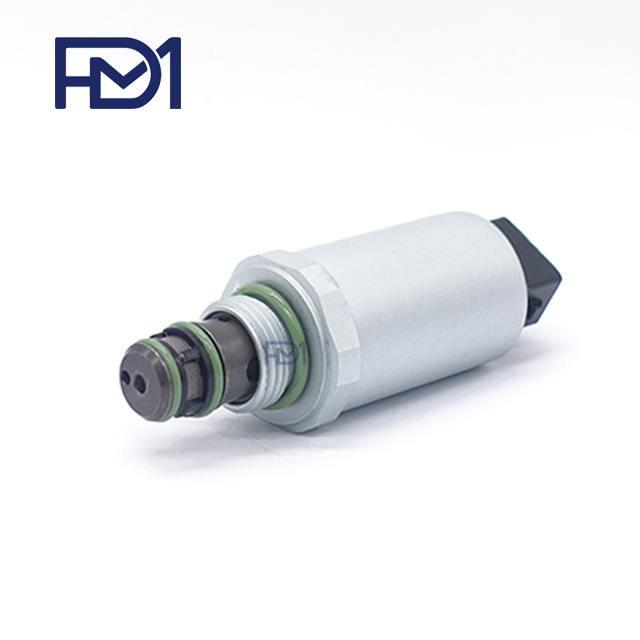

PRODUCT IMAGE
