Product Name: Pressure Relieving Proportional Valve
OE/OEM Part Number: IS58401 TM58401
Produce Description:
A pressure-relieving proportional valve is a type of control valve that is designed to maintain a specific pressure within a system by automatically adjusting the flow of fluid based on the input signal or pressure difference. It combines the functions of a pressure regulator and a proportional valve in one device.
1. Proportional Function: The valve has a built-in linear or exponential proportional control, which means that the output flow (pressure drop) is directly proportional to the input signal or pressure difference across the valve. This allows for precise control over the system pressure, ensuring that it stays within a desired range.
2. Pressure Relief: The primary function of this valve is to prevent excessive pressure from building up in the system. If the upstream pressure exceeds the set point, the valve opens, allowing excess fluid to flow to the downstream, thus reducing the pressure. Once the pressure drops below the set point, the valve gradually closes, stopping the flow and restoring the pressure.
3. Self-Regulating: As the valve operates, it continuously monitors the pressure and adjusts the flow accordingly. This self-regulating feature ensures stability and prevents sudden pressure spikes or surges that could damage the system components.
4. Electronic or Mechanical Control: Depending on the design, the valve can be controlled electronically using a signal from a controller or manually with a mechanical adjustment. Electronic versions often have digital inputs that allow for precise programming and adjustments.
5. Applications: Pressure-relieving proportional valves are commonly used in various industries, including automotive, aerospace, manufacturing, and HVAC systems, where maintaining consistent pressure is crucial for equipment safety and performance.

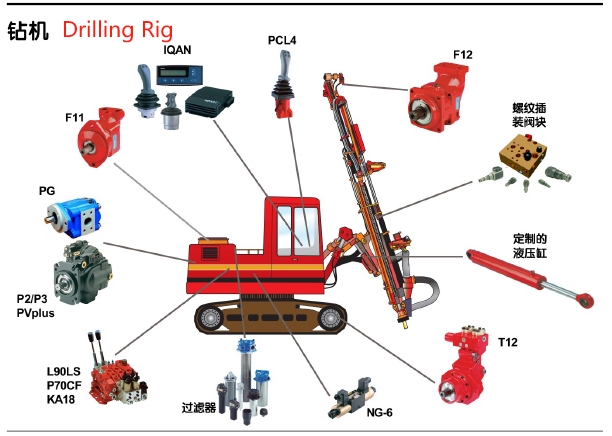

Application field:Drilling Rig

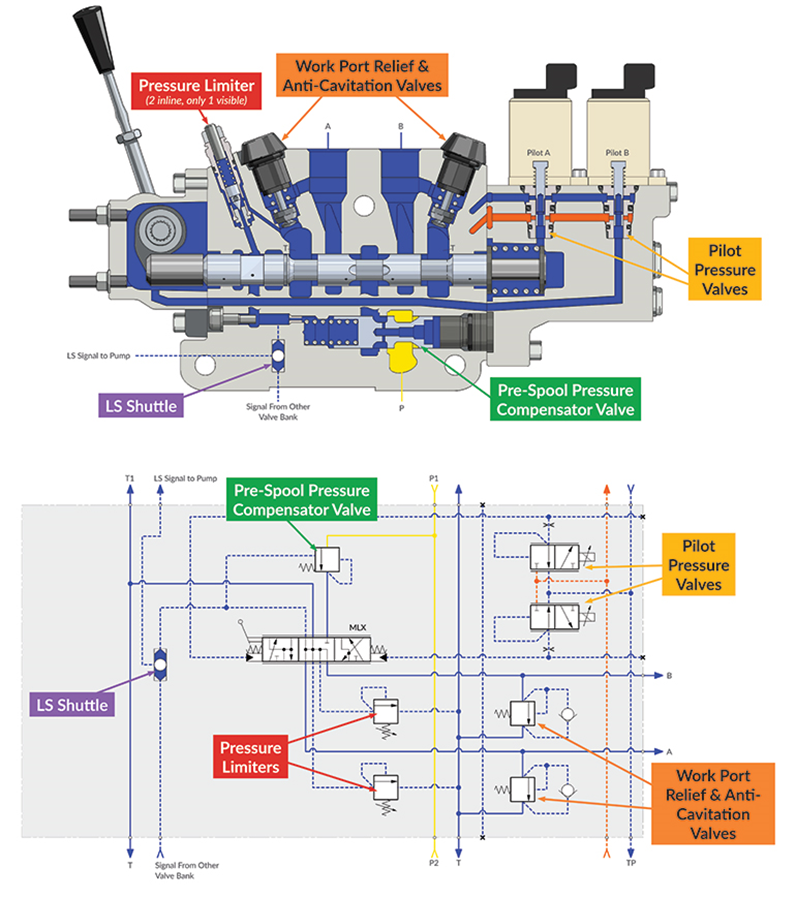

product application structure diagram:

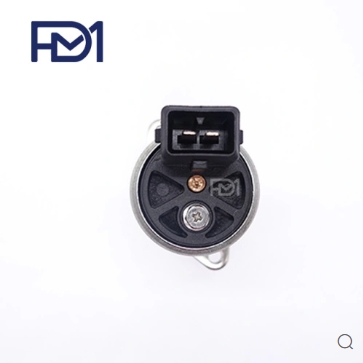

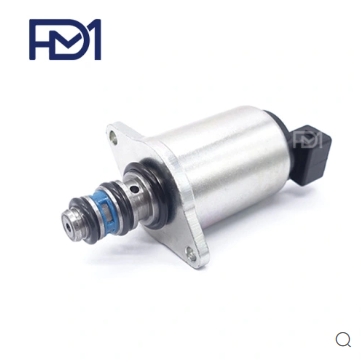

Product Image:
